Export to Flat File¶
Zuar Runner can output data to delimited (e.g. comma, tab, pipe, etc) flat files.
![database table to csv](../_images/flat-file-1.png)
Outputting to a flat file with a custom IO job¶

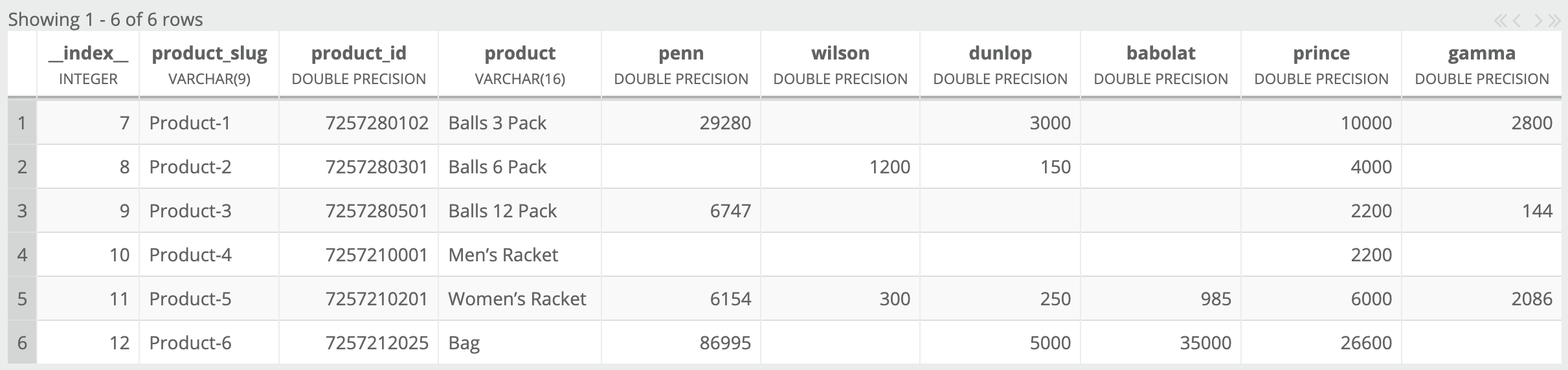

Here’s an example SQL database table we will export to CSV using a modified Query job.
![../_images/export-to-flat-file__table.png](../_images/export-to-flat-file__table.png)
Sample data for toCSV
Use the Generic plugin to create a custom IO job.
Set the type
to io
.
Use the job config below:
{
"input": {
"dbo": "postgresql://db/analytics",
"query": [
"SELECT * from excel.tennis_products;"
],
"use": "query.io#QueryInput"
},
"output": {
"delimiter": ",",
"path": "/var/mitto/data/output_{year}_{month}_{day}.csv",
"use": "call:mitto.iov2#tocsv"
},
"steps": [
{
"transforms": [
{
"rename_columns": false,
"use": "mitto.iov2.transform#ExtraColumnsTransform",
"include_empty_columns": true
}
],
"use": "mitto.iov2.steps#Input"
},
{
"transforms": [
{
"use": "mitto.iov2.transform#FlattenTransform"
}
],
"use": "mitto.iov2.steps#Output"
}
]
}
Job Config Keys¶
The input
below is used for a Query job, but the
key components when exporting to a flat file are the output
and the
steps
. The input can be an input from any IO job.
input¶
Contains the database and query: SELECT * from excel.tennis_products;
. Any
SELECT
statement will work. Zuar Runner will use the column names for headers.
output¶
Contains the output path, and the delimiter to use. /var/mitto/data/
is the
public directory. Files in this directory will be visible in the Files
page
(in the menu on the left of your Zuar Runner UI).
In this example we’re using ,
as a delimiter. For tabs use: \t
The output code uses the Python csv
package. Any key word arguments can be
passed to csv.writer
(https://docs.python.org/3/library/csv.html#csv.writer).
Path Variables¶
It is possible to include date and time variables in your output
path/filenames. In our example
/var/mitto/data/output_{year}_*{month}_*{day}.csv
, the strings inside
curly brackets {}
are variables; in this case the current year, month and
day.
Available Variables:
year - The current year (2020)
month - The current month (05)
day - The current day (26)
hour - The current hour (07)
start_time - Date and time the job started (05-26-2020T07:30:30)
last_year - 2019
last_month - 04
last_day - 25
last_hour - 06
next_year - 2021
next_month - 06
next_day - 27
next_hour - 08
week - The week number for week of the year. (01-52)
You can also pull out values from the last and next values:
Yesterday’s day is
{last_day.day}
, month is{last_day.month}
, and year is{last_day.year}
.
These are more complex examples using Python’s **strftime** on date values:
Today is
{now:%A}, {now:%B} {now:%d}, {now:%Y}
One year ago from today was
{last_year:%c}
The time is
{now:%X}
The time is
{now:%I}:{minute}:{second} {now:%p}
steps¶
Any steps for processing the data. The steps included in the example above are
default steps which will include empty columns (via "include_empty_columns":
true
) and will not rename columns (via "rename_columns": false
).

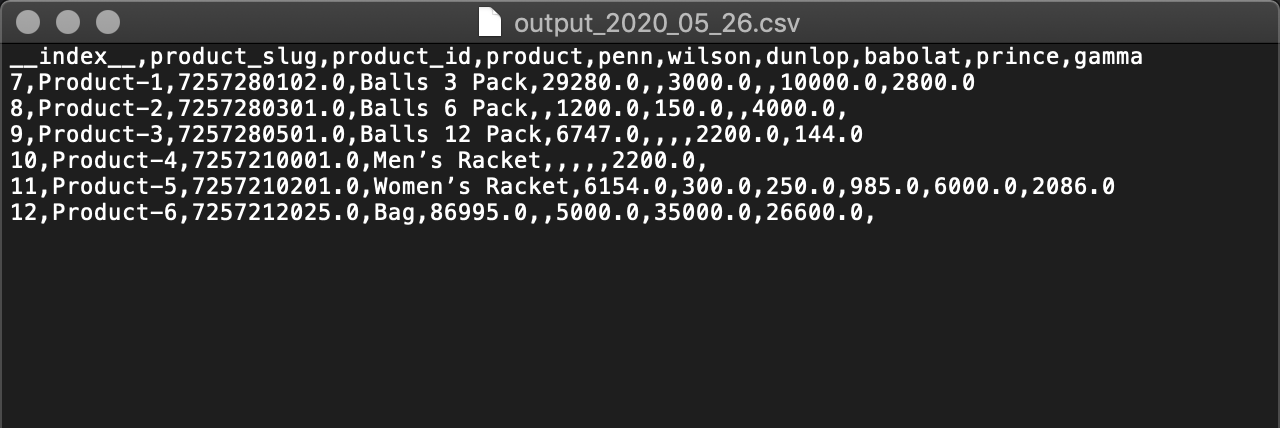

Resulting Flat File¶
The resulting flat file is created on Zuar Runner’s file system.
![../_images/export-to-flat-file__output_file.png](../_images/export-to-flat-file__output_file.png)
Output from toCSV job
You can download the file manually or use another job (e.g. email, Rclone, command line, etc) to send the file elsewhere automatically.
