Overview
The Excel plugin enables Mitto to pipe data from Excel and store the data in a database.
Create an Excel job
Click + Add Job.
Choose Excel.
Fill out the forms.
Source- Choose the Excel file you want to pipe data from. The Excel file must exist in the Mitto file manager.
Click Next.
Sheet- This is the tab/sheet in the Excel file. You will only create 1 table in the database from 1 sheet in the Excel file. In the Excel plugin wizard, the list of sheets will be available in the dropbox. In the resulting Excel job,sheetcan either use the name of the sheet as a string or the index of the sheet as an integer (0 is the first sheet).Start Row- This is optional, but allows you to skip rows in the Excel file. 0 is the first row. 0 by default.Start Column- This is optional, but allows you to skip columns in the Excel file. 0 is the first column. 0 by default.Include Header- Check this if the data has a header. Checked by Default.Noneify- Check this if you want to convert empty values to NULL. Checked by default.
Click Next.
Title- This is the resulting job's title.Type- This is the output database.Table- This is the output table.Schema- This is the output schema.
For Excel job naming best practices, see the following convention:
- If the name of the Excel file is
Orders.xlsxand the name of the tab in the file isSheet1then the name of the job should be:[Excel] Orders.xlsx - Sheet 1.
Click Done.
Configure an existing Excel Job
Navigate to the job and click Edit.
The main sections to edit are input and output.
Input:
source: This is the Excel file on the Mitto box.
sheet: This is the tab/sheet in the Excel file. You will only create 1 table in the database from 1 sheet in the Excel file. sheet can either use the name of the sheet as a string or the index of the sheet as an integer (0 is the first sheet).
start_column: This is optional, but allows you to skip columns in the Excel file. 0 is the first column.
start_row: This is optional, but allows you to skip rows in the Excel file. 0 is the first row.
Output:
dbo: This is the connection string of the output database. If you are outputting data into Mitto's internal PostgreSQL database, leave this as is.
schema: This is the output schema in the database.
table: This is the output table in the database.
Example Excel Inputs
GitHubUse Case: How to Manipulate Excel Data for Analytics
Recently at Zuar, we had a user that needed to pull a subset of data from a Microsoft Excel spreadsheet, and pivot that Excel data to create a new table with a specific data structure.
Consider the following spreadsheet:
The user wanted a final table with Member, Member ID, Product SLUG, Product ID, Product and all of the product volume data (cells C7-J12). They also only wanted data from the first table in the Excel sheet and did not want the total rows (row 13).
First, we need to pull two sets of data from the spreadsheet. One set will have member, and the member ID (in green below), and the other set will include all the product data (in red below).
Next, we needed to pivot that data into a vertical format. Finally, we will do a full outer join on the two pivoted tables, and then run everything in sequence.
Excel Jobs in Mitto
In Mitto we'll create two Excel jobs. Both Excel jobs use the same Excel file as a data source, but each job will grab a different section of Excel data.
The first Excel job (in green) will have a start column of 3 and a start row of 3 (always using a zero index), and should only include 2 rows.
The second job (in red) will start at row 5 and should only include 7 rows. start_column and start_row are keys that can be provided in the "input" block of a job. To stop pulling data after a set number of rows we can use the SliceTransform class in the "transforms" step.
Consider the following JSON for the first job (in green):
{
"input": {
"sheet": "Sheet 1",
"source": "Blog_Example.xlsx",
"start_column": 3,
"start_row": 3,
"use": "flatfile.iov2#ExcelInput"
},
"output": {
"dbo": "postgresql://localhost/analytics",
"schema": "excel",
"tablename": "pivot_example_blog_members",
"use": "call:mitto.iov2.db#todb"
},
"steps": [
{
"transforms": [
{
"stop": 1,
"use": "mitto.iov2.transform.builtin#SliceTransform"
},
{
"use": "mitto.iov2.transform#ExtraColumnsTransform"
},
{
"use": "mitto.iov2.transform#ColumnsTransform"
}
],
"use": "mitto.iov2.steps#Input"
},
{
"use": "mitto.iov2.steps#CreateTable"
},
{
"transforms": [
{
"use": "mitto.iov2.transform#FlattenTransform"
}
],
"use": "mitto.iov2.steps#Output"
},
{
"use": "mitto.iov2.steps#CountTable"
}
]
}This is the JSON defining the first job (in green). You will note there are 3 blocks, "input," "output," and "steps."
At the top in the "input" block, you will see the start_row and the start_columns defined. Mitto always uses zero indexes for tabular data rows and columns, meaning we start counting at zero, not one. Therefore, the fourth cell from the left is "start_column": 3.
The second block, "output," defines where the resulting data will be stored. This could define anything, including flat files, but in this case we're outputting the Excel data into Mitto's built in PostgreSQL database in a schema named excel, and a table named pivot_example_blog_members.
In the "steps" block, we define each step of transforming the data from Excel to SQL, including the very first step SliceTransform, which limits the number of rows we want from the spreadsheet to one. Again starting at a zero index, so 1 will yield two rows.

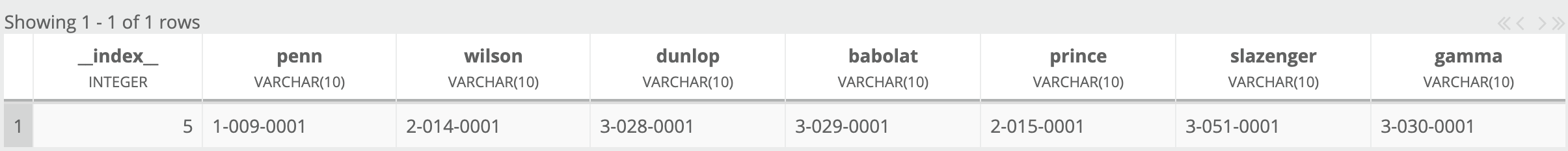

Running this job will produce the following table:
excel.pivot_example_blog_members

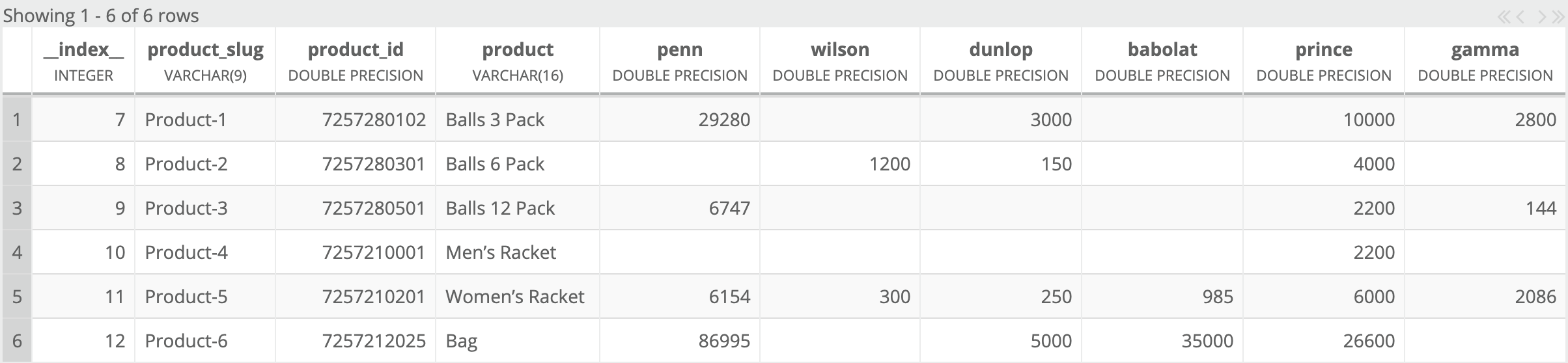

Running a similar job for the data in red will produce this table:
excel.pivot_blog_table
SQL Jobs
Now that we have Excel data in the database, we need to transform the data to get to the final result the user wants.
We'll create two more Mitto jobs in order to pivot the data from horizontal to vertical. These jobs will be SQL jobs using PostgreSQL syntax. In order to pivot the data we'll use the LATERAL keyword, which is kind of like an SQL for-loop. For every product in our table we want to list each member and their volume data. The SQL is as follows:
DROP TABLE IF EXISTS excel.pivotted_table;
CREATE TABLE IF NOT EXISTS excel.pivotted_table AS
SELECT
t.__index__
, t.product_slug
, t.product_id
, t.product
, v.*
FROM
excel.pivot_examples_blog_table t
, LATERAL (VALUES
('penn', t.penn)
, ('wilson', t.wilson)
, ('dunlop', t.dunlop)
, ('babolat', t.babolat)
, ('prince', t.prince)
, ('gamma', t.gamma)
) v (member, values)
;For the member pivot, we'll use:
DROP TABLE IF EXISTS excel.pivotted_members;
CREATE TABLE IF NOT EXISTS excel.pivotted_members AS
SELECT
t.__index__
, v.*
FROM
excel.pivot_example_blog_members t
, LATERAL (VALUES
('penn', t.penn),
('wilson', t.wilson),
('dunlop', t.dunlop),
('babolat', t.babolat),
('prince', t.prince),
('gamma', t.gamma)) v (member, member_id)
;The resulting tables will look like this:

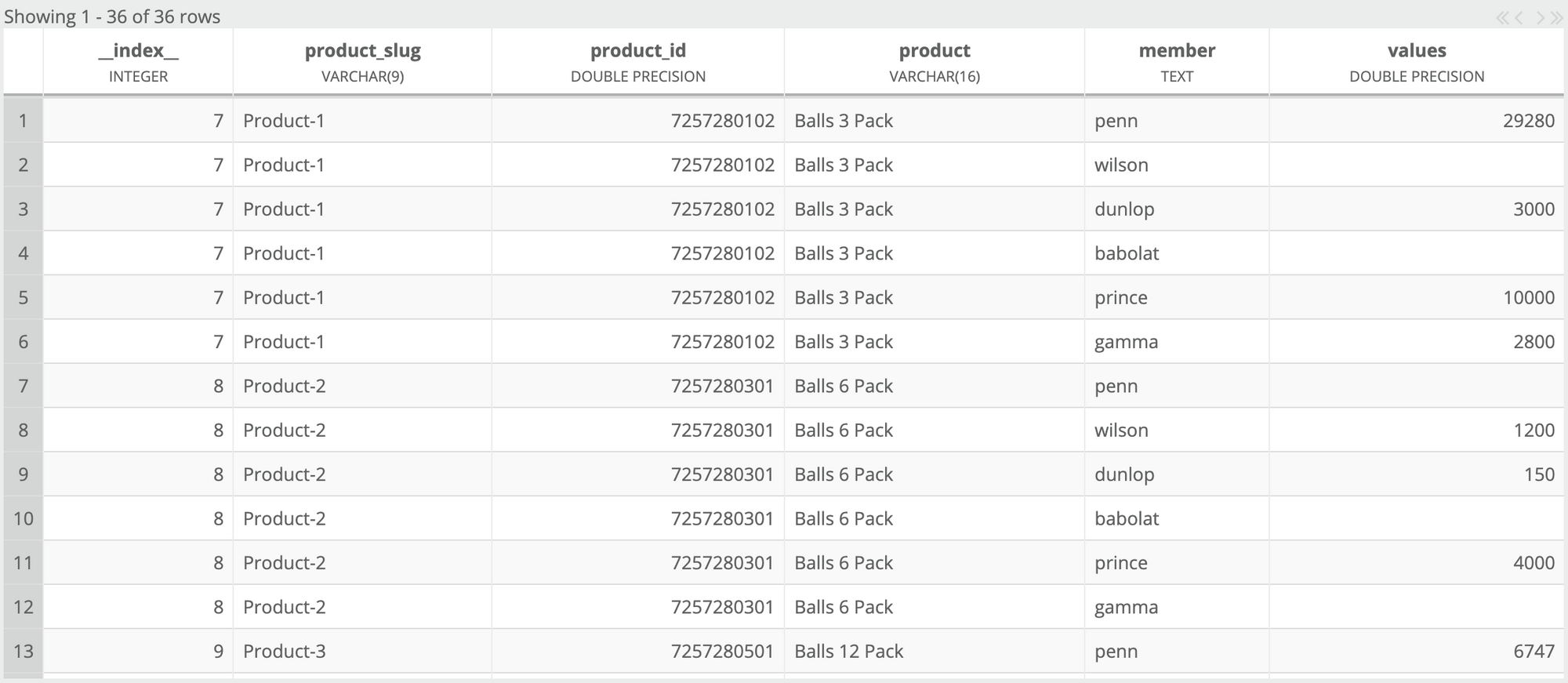

excel.pivoted_table

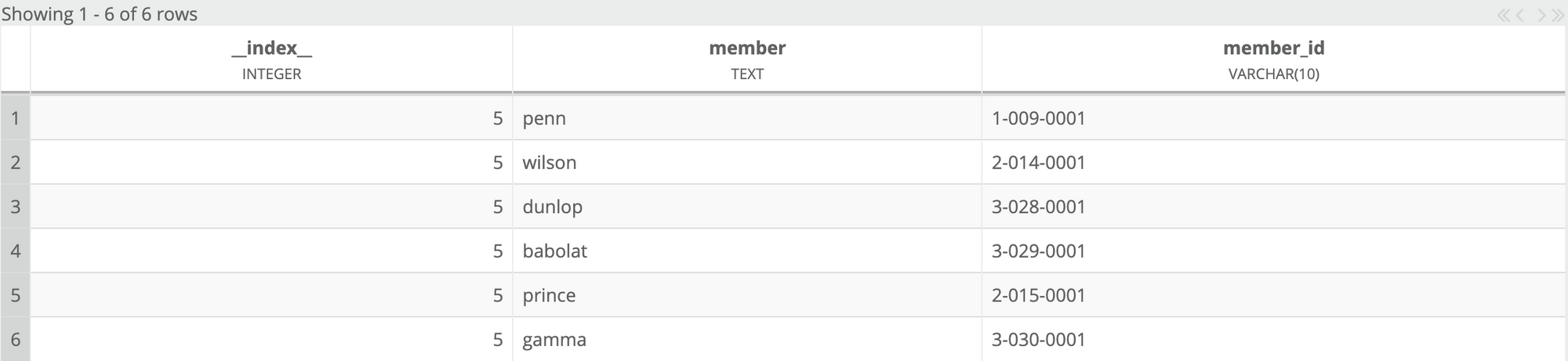

excel.pivoted_members
One final SQL job will do a full outer join on these two tables on the member column:
DROP TABLE IF EXISTS excel.joined_pivot;
CREATE TABLE IF NOT EXISTS excel.joined_pivot AS
SELECT
excel.pivotted_members.member
, excel.pivotted_members.member_id
, excel.pivotted_table.product_slug
, excel.pivotted_table.product_id
, excel.pivotted_table.product
, excel.pivotted_table.values
FROM
excel.pivotted_members
FULL OUTER JOIN excel.pivotted_table
ON excel.pivotted_members.member = excel.pivotted_table.member
;Sequence all Jobs Together to Manipulate Excel Data
Finally in our Mitto on the bottom left, hover over the "Add" button and select "Sequence." In the order they were made, drag all the jobs one by one into the box on the left, and make sure each job has "Enabled" checked. Click on "Submit" to create the sequence and then run it.

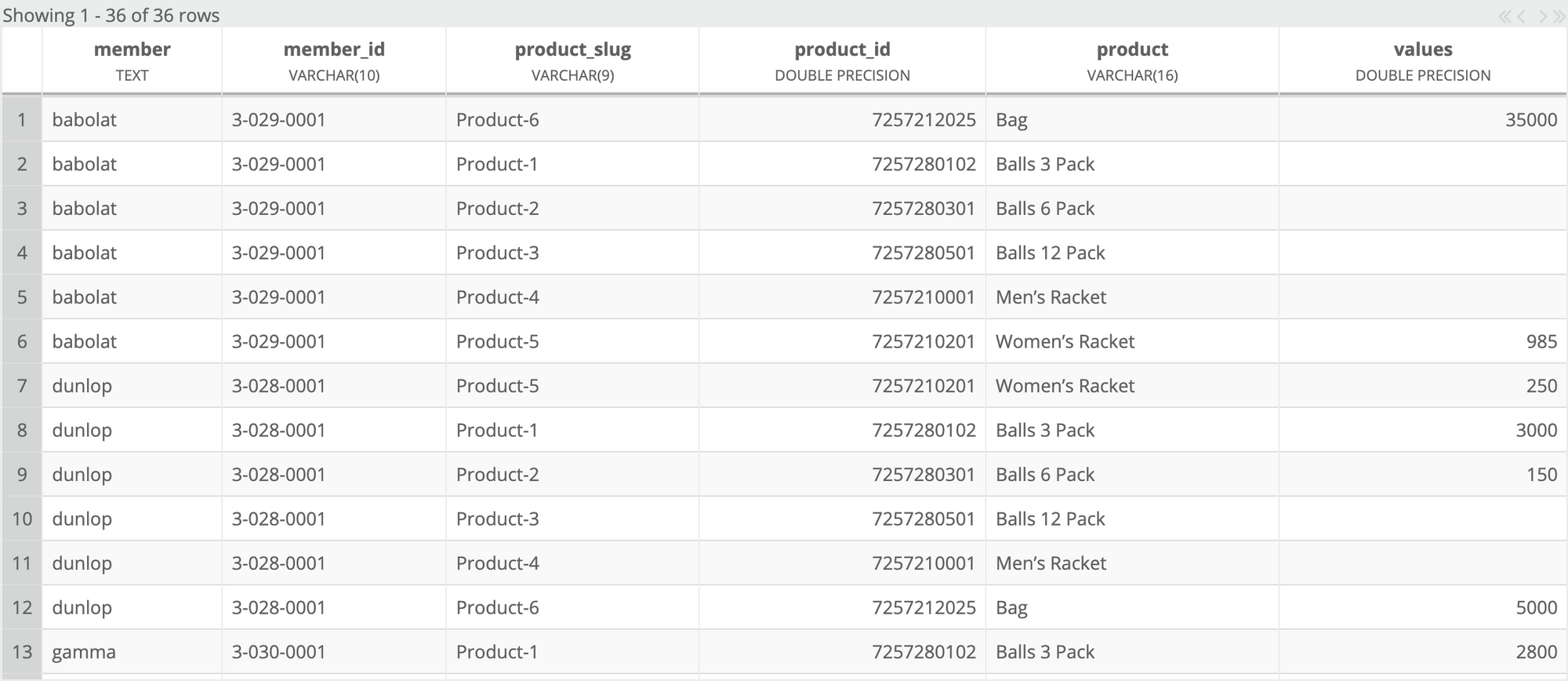

If all went well you should end up with a table like this:
excel.joined_pivot
