Currently, there are almost 50 plugins written for connecting Mitto to various APIs (Salesforce, Netsuite, etc), databases, and flat files. Most of these plugins are created and maintained by Zuar as either part of base Mitto or premium plugin subscriptions.
If you have a custom API or a data source Mitto doesn't currently have a plugin for, it is possible to write your own Mitto plugin in Python.
We've added a sample custom Mitto plugin, written to connect to the sample API at reqres.in. This plugin can read and interpret data from the users endpoint.
Here's the Mitto plugin for ReqRes in Github: https://github.com/zuarbase/mitto-plugin-reqres
(Edit 11/17/2021) for this blog post please: git checkout bare-bones
Adding this plugin to Mitto is easy using just a few command line jobs to download and install the plugin. Once the plugin is installed you can create a Mitto job that uses it.
Download the Plugin
The first Mitto job we create will clone the git repo onto Mitto's file system. This job will only be run once (running it twice would cause a "folder exists" error).
Since the mitto-plugin-reqres repo is publicly available we can just clone the repo using HTTP (we won't have to add any ssh or deploy keys). If your custom plugin is stored in a private repo, you would need to upload your key to Mitto's filesystem, and run another command line job to add the key and change the permissions
Zuar | Blog
In the Mitto UI, we click the Add Job button in the bottom left-hand corner of the page. Select Command as the job type. When prompted in the wizard add a job name, and use the command:
git clone https://github.com/zuarbase/mitto-plugin-reqres.git /var/mitto/data/mitto-plugin-reqres && cd /var/mitto/data/mitto-plugin-reqres && git checkout bare-bones
Running the job clones the repo on our Mitto inside /var/mitto/data/.
Install the Plugin on Mitto
Any plugin Mitto finds in /var/mitto/plugin is usable via Mitto jobs.

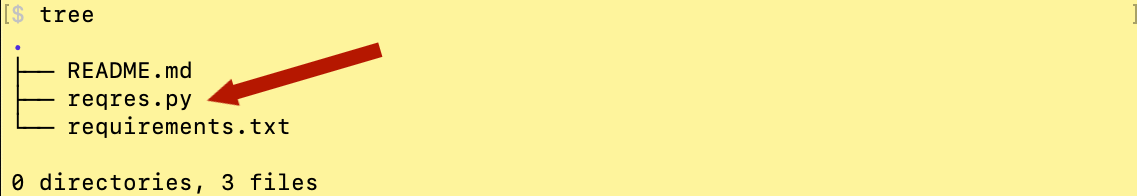

The second job we create will create a sym link to the Python file in our plugin repo in /var/mitto/plugins. The python package is the file named reqres.py shown below:
Once again, create a command line job using the Add Job wizard. This time when prompted, use the following command:
ln -s /var/mitto/data/mitto-plugin-reqres/reqres.py /var/mitto/plugin/reqres.py
Use the Plugin with a Mitto Job
Finally, we create a job that uses our custom plugin. Using the Add Job wizard we select Generic Job as the job type. We give the job a name, select io as the job type, and then enter the following JSON:
{
"input": {
"endpoint": "users",
"use": "reqres#ReqResInput"
},
"output": {
"dbo": "postgresql://localhost/analytics",
"schema": "reqres",
"tablename": "users",
"use": "call:mitto.iov2.db#todb"
},
"steps": [
{
"transforms": [
{
"use": "mitto.iov2.transform#ExtraColumnsTransform"
},
{
"use": "mitto.iov2.transform#ColumnsTransform"
}
],
"use": "mitto.iov2.steps#Input"
},
{
"use": "mitto.iov2.steps#CreateTable"
},
{
"transforms": [
{
"use": "mitto.iov2.transform#FlattenTransform"
}
],
"use": "mitto.iov2.steps#Output"
},
{
"use": "mitto.iov2.steps#CollectMeta"
}
]
}

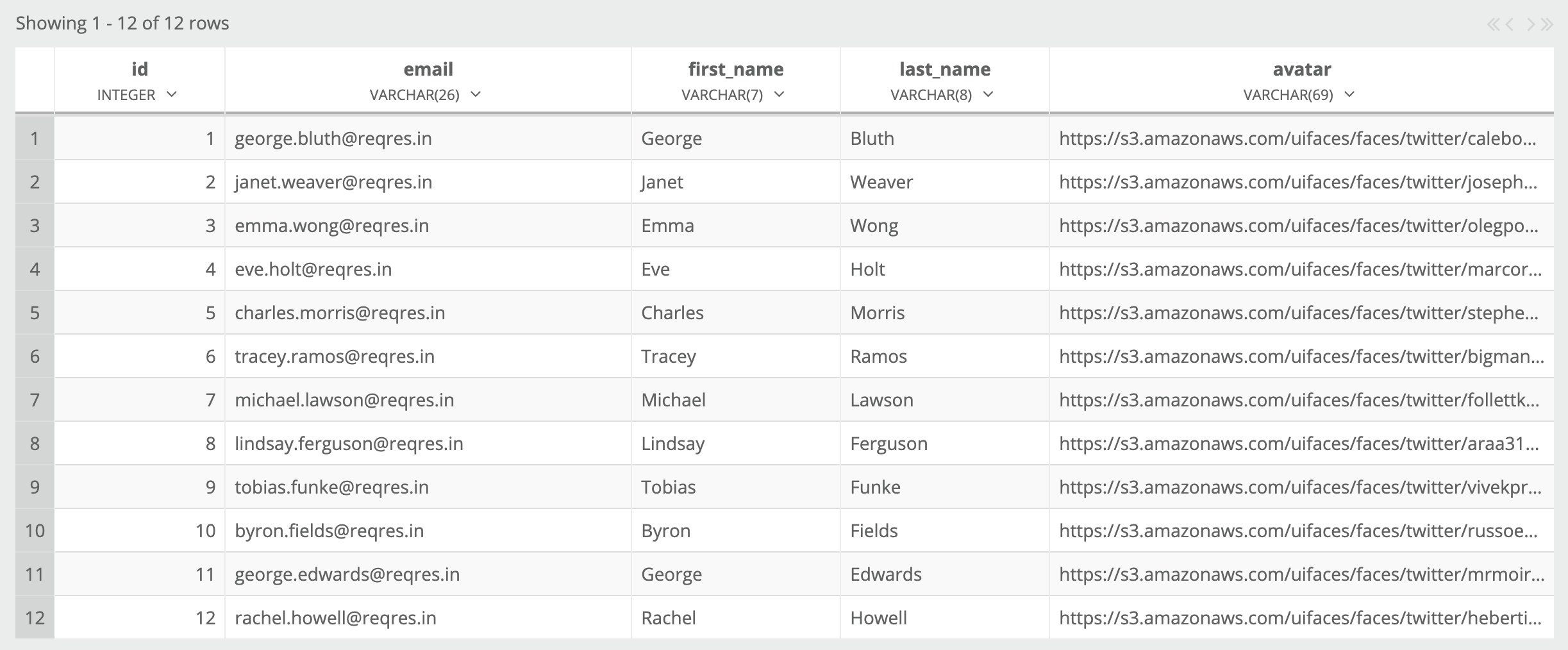

Running the job will hit the users endpoint at https://reqres.in/api/users and write the data to the table reqres.users in Mitto's internal PostgreSQL database analytics.
